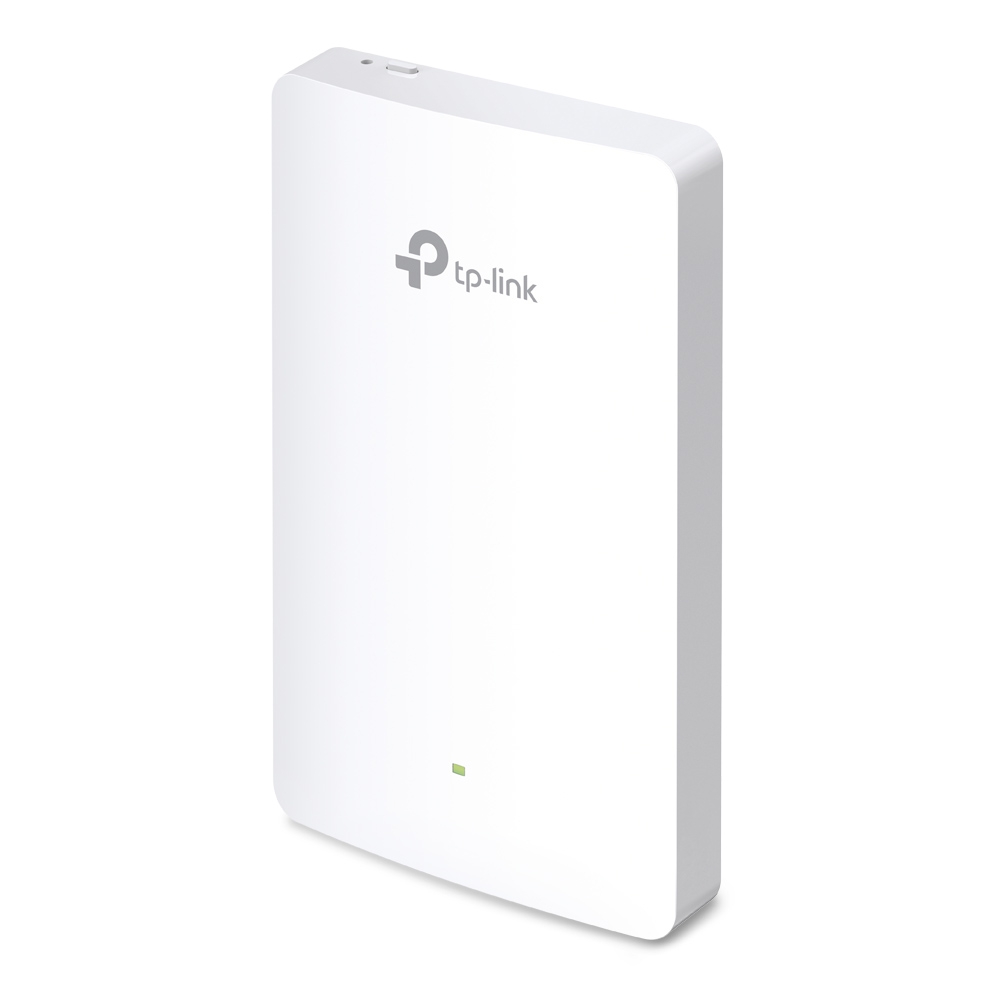

Omada AC1200 Wireless MU-MIMO Wall-Plate Access Point

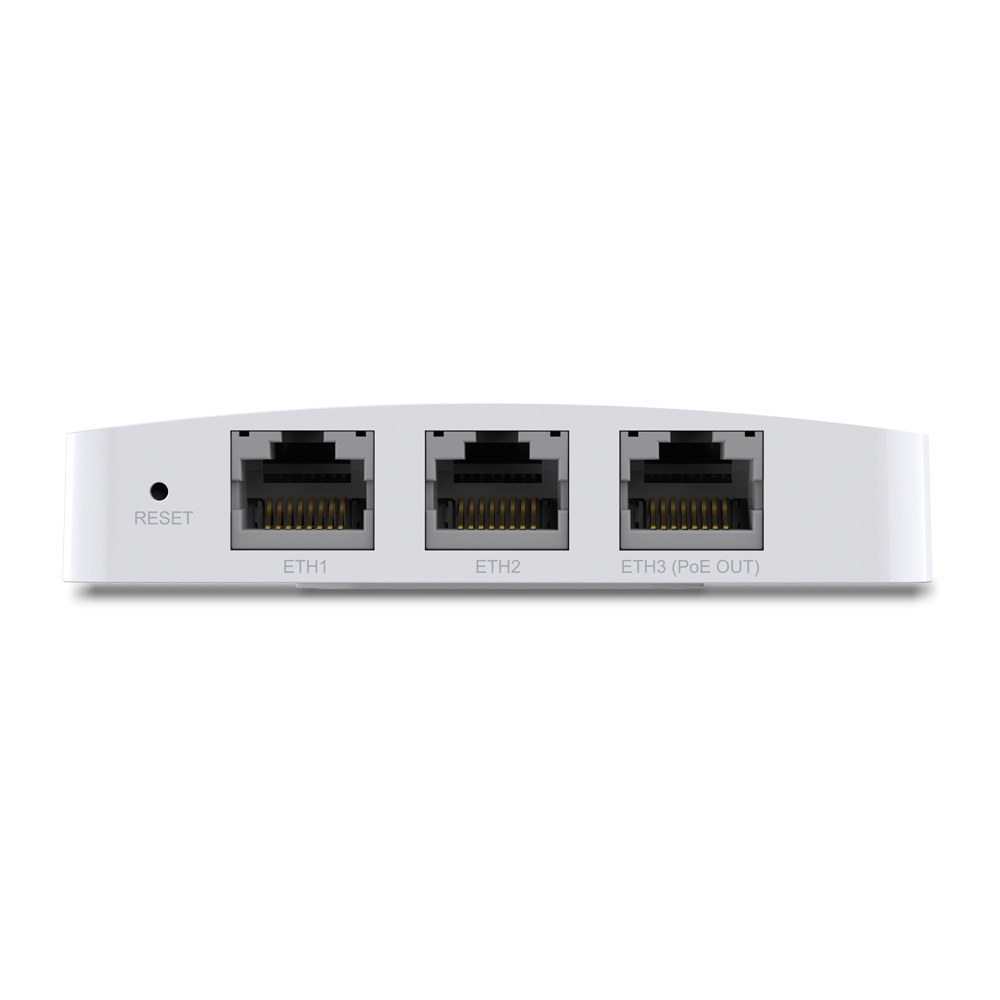

SPECIFICATION HARDWARE FEATURES Interface Uplink: 10/100Mbps Ethernet Port*1 Downlink: 10/100Mbps Ethernet Port*3 (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13W.) Button Reset Power Supply 802.3af/802.3at PoE Power Consumption 9 watts /25.5 watts (PoE Out Included) Dimensions 143 × 86 × 19.7mm (5.6 × 3.4 × 0.8 in) Antenna 2 Dual-Band Antennas 2.4GHz: 2*3dBi 5GHz: 2*4dBi Mounting Wall Plate Mounting Physical Security Lock Yes Hardware Watch Dog Yes WIRELESS FEATURES Wireless Standards IEEE 802.11n/g/b/ac Frequency 2.4GHz and 5GHz Signal Rate 5GHz: Up to 867Mbps 2.4GHz: Up to 300Mbps Wireless Functions 16 SSIDs（Up to 8 SSIDs on each band） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client Wireless Security Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Local LAN port based VLAN Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK Transmission Power CE: ≤20 dBm (2.4 GHz, EIRP) ≤23 dBm (5 GHz, EIRP) FCC: ≤21 dBm (2.4 GHz) ≤21 dBm (5 GHz) MANAGEMENT Omada Cloud Access Yes Omada App Yes Omada Cloud Controller Yes Omada Controller Software Yes Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1,v2c System Logging Local/Remote Syslog Local/Remote Syslog SSH Yes Web-based Management HTTP/HTTPS L3 Management Yes Multi-site Management Yes Management VLAN Yes OTHERS Certification CE, FCC, RoHS Package Contents Omada AC1200 Wireless MU-MIMO Wall-Plate Access Point EAP225-Wall Installation Guide Mounting Screw System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 Environment Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
