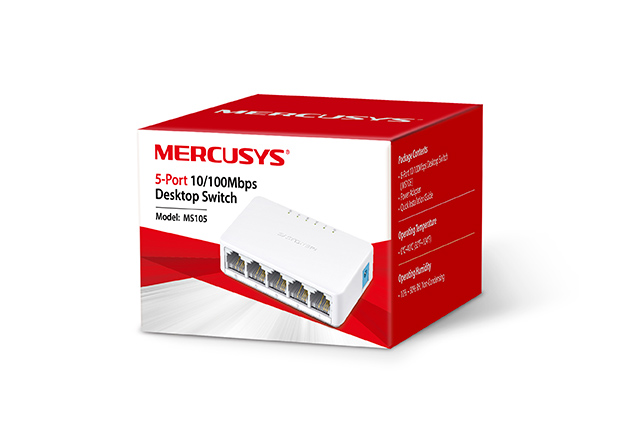

Mercusys 5-Port 10/100Mbps Desktop Switch – MS105

+ Free Shipping
  • Five 10/100Mbps auto-negotiation RJ45 ports with auto MDI/MDIX supported
  • Easily wired network expansion
  • Compact design for flexible arrangement
  • Plug and play setup, no configuration required
SKU: MS105 Categories: , ,

Easy Wired Network Expansion

5-Port 10/100Mbps Desktop Switch | MS105

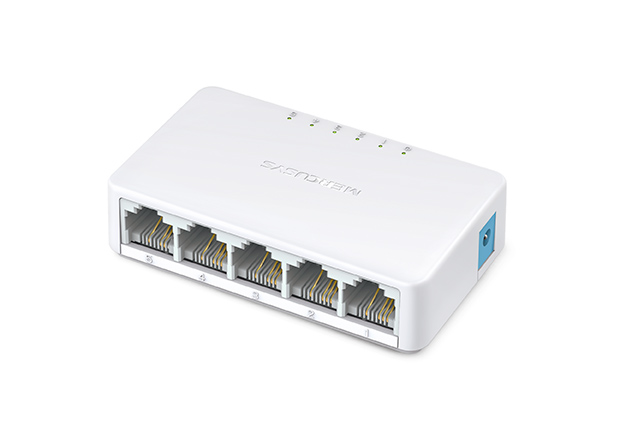

Sleek,Ultra-Compact Design

About the same size as a credit card, the MS105 can be placed anywhere in your home without taking up too much space. Its fanless design allows it to remain unobtrusive, regardless of how long it has been running.

  • Size : 80 × 48mm
  • Size : 86 × 54mm

Expand Ethernet Network

With five 10/100Mbps Ethernet ports, you can quickly expand your wired network. The MS105 is flexible and is fully compatible
with computers, printers, IP cameras, smart TVs, game consoles, and more. This makes it perfect for
home, small office, and even dormitory environments.

  • computers
  • printers
  • IP cameras
  • smart TVs
  • game consoles

Ease of Use

Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.

Reliable Performance

With Half/Full Duplex and MAC Address Learning Technology, the MS105 provides up to 1Gbps of stable switching bandwidth. Every unit undergoes extensive testing prior to shipment, ensuring that the MS105 will provide reliable, uninterrupted connections for years to come.

Specifications

Dimensions (W X D X H) 82 x 49 x 21 mm Interfaces 5 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX External Power Supply External power adapter (Output: 5.0VDC/0.6A) Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD Fan Quantity Fanless Data Rates 10/100Mbps at half duplex 20/200Mbps at full duplex Buffer Capacity 768Kb Jumbo Frame 2KB Switching Capacity 1Gbps LED Ethernet (1, 2, 3, 4, 5), Power Transfer Method Store and forward Certifications CE, RoHS Package Contents 5-Port 10/100Mbps Desktop Switch MS105 Power adapter Quick installation guide Environment Operating temperature: 0°C~40°C (32°F~104°F) Storage temperature: -40°C~70°C (-40°F~158°F) Operating humidity: 10% ~ 90% non-condensing Storage humidity: 5%~90% non-condensing
