Mercusys 150Mbps Wireless N Router – MW155R

+ Free Shipping
  • 150Mbps wireless speed is ideal for surfing, streaming and downloading
  • 5dBi antenna dramatically increases wireless strength and stability
  • Intuitive webpage makes installation easy

Broad Wi-Fi Coverage

Built with a 5dBi antenna to boost its reception and signal sensitivity, the MW155R provides stable Wi-Fi for your connected devices. Wireless speeds of up to 150Mbps make it ideal for streaming, file downloading and video chatting.

Convenient , Compact Design

Advances in R&D have allowed us to create a router that fits in the palm of  your hand, without compromising its performance. High quality components, including the Qualcomm-Atheros Chipset, sit at  the core of the router, allowing it to be as powerful as it is small.

Three-Step Installation

With no need for complicated configuration, you can simply follow the step-by-step instructions on the intuitive webpage to set up your MW155R in minutes.

  • 1 / Create a unique login password
  • 2 / Choose your Internet service and fill in the required information
  • 3 / Set your wireless network name (SSID) and password

Network Security

Comprehensive security features help your devices form safe connections to the MW155R.

  • Parental Control

    Manage when and how connected devices can access the Internet

  • Guest Network

    Keeps your main network secure by creating a separate network for guests

  • Advanced Encryption

    WPA/WPA2 encryption standards ensure that your wireless connection is safe from intruders

Specifications

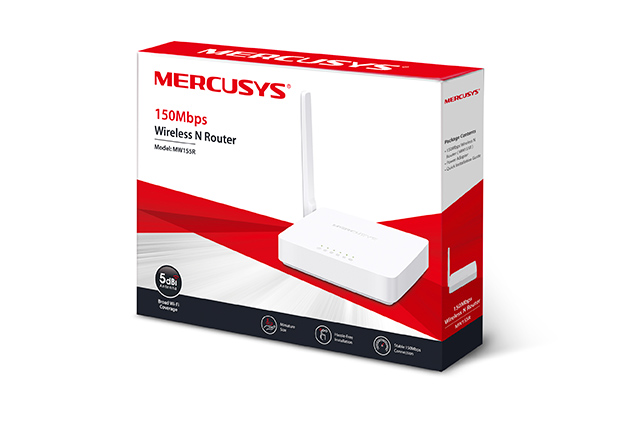

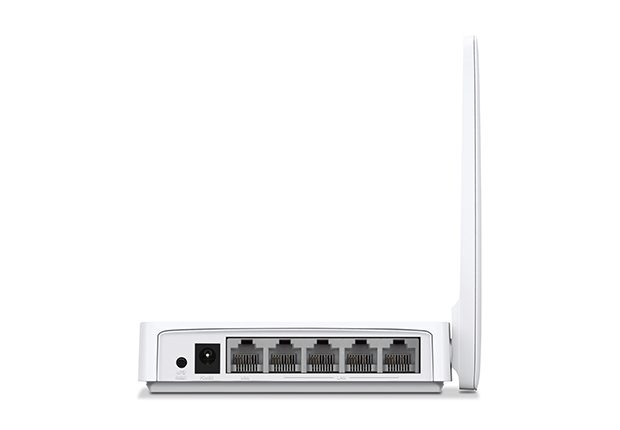

Dimensions (W X D X H) 114 x 94 x 26 mm Interfaces 4 10/100Mbps LAN ports 1 10/100Mbps WAN port Button WPS/Reset button External Power Supply 5VDC / 0.6A Antenna Type 5dBi fixed omni directional antenna Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Frequency 2.4 – 2.4835GHz Signal Rate 11n: Up to 150Mbps (Dynamic) 11g: Up to 54Mbps (Dynamic) 11b: Up to 11Mbps (Dynamic) Reception Sensitivity 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER Certifications CE, ROHS Package Contents 150Mbps Wireless N Router MW155R Power adapter Quick installation guide Ethernet cable Environment Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F) Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F) Operating humidity: 10% ~ 90% non-condensing Storage humidity: 5% ~ 90% non-condensing Transmission Power <20dBm Wireless Security 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK Wireless Functions WDS bridge, WMM, wireless statistics Quality of Service WMM, bandwidth control WAN Type Dynamic IP/Static IP/PPPoE Management Access control Local management Remote management DHCP Server, client, DHCP client List, address reservation Port Forwarding Virtual server, UPnP, DMZ Dynamic DNS Oray Firewall Security IP and MAC address binding Protocols IPv4 Guest Network 2.4GHz guest network
