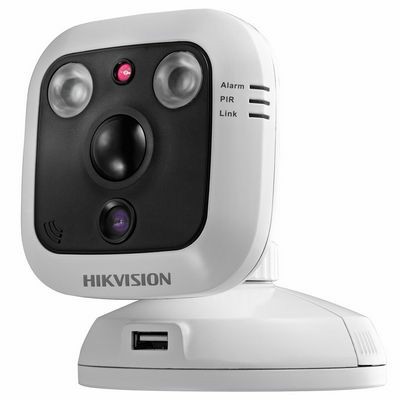

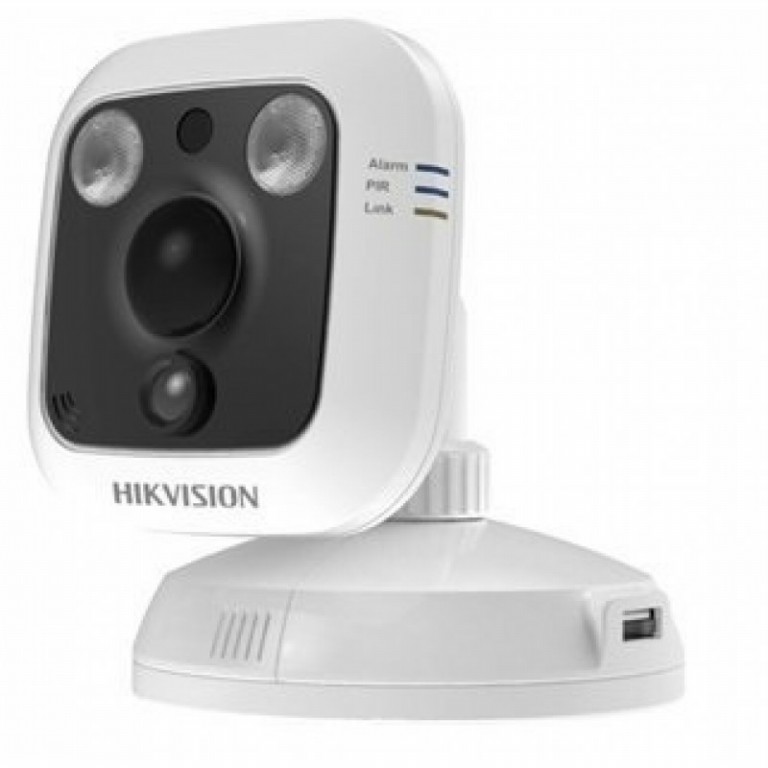

HIKVISION DS-2CD8464F-EIGE 1.3MP ALARM PRO CUBE IP-CAMERA Provides a best HD video quality 1.3MP high-resolution real-time video as well as up to image resolution 1280 × 960 high-speed video protocol processor. As a result, it is capable of H.264/MJPEG video compression allowing for extremely smooth video transmission with minimal bandwidth consumption. Also, due to the small file sizes produced by H.264/MJPEG video compression, it can save tremendous hard drive space when doing video recording.
Specifications
| Camera | |
| Image sensor | 1/3” progressive scan CMOS |
| Min. illumination | 0.01 lux@F1.2, AGC on
0.028 lux@F2.0, AGC on -I: 0 lux with IR on |
| Shutter time | 1/25s ~ 1/100,000s |
| Lens mount | M12 |
| Lens | 4mm @F2.0, angle of view: 68° |
| Day & night | IR cut filter with auto switch |
| Digital noise reduction | 3D DNR |
| Compression Standard | |
| Video compression H.264 / MPEG4 / MJPEG | Video compression H.264 / MPEG4 / MJPEG |
| Bit rate 32 Kbps ~ 16 Mbps | Bit rate 32 Kbps ~ 16 Mbps |
| Audio compression G.711 / G.726 | Audio compression G.711 / G.726 |
| Audio bit rate 64 Kbps (G.711) / 16 Kbpss (G.726) | Audio bit rate 64 Kbps (G.711) / 16 Kbpss (G.726) |
| Dual stream Yes | Dual stream Yes |
| Image | |
| Max. image resolution 1280 × 960 | Max. image resolution 1280 × 960 |
| Frame rate | Frame rate |
| 50 Hz: 25 fps (1280 × 960), 25fps (1280 x 720), 25fps (640 x 480) | 50 Hz: 25 fps (1280 × 960), 25fps (1280 x 720), 25fps (640 x 480) |
| 60 Hz: 30 fps (1280 × 960), 30fps (1280 x 720), 30fps (640 x 480) | 60 Hz: 30 fps (1280 × 960), 30fps (1280 x 720), 30fps (640 x 480) |
| Network | |
| Network storage NAS (iSCSI optional) | Network storage NAS (iSCSI optional) |
| Alarm trigger Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception | Alarm trigger Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception |
| Protocols | Protocols |
| TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, |
| 802.1x, Qos, (SIP, SRTP, IPv6 optional) | 802.1x, Qos, (SIP, SRTP, IPv6 optional) |
| Interface | |
| Communication interface | RJ45 10M / 100M ethernet port x1 |
| On-board storage | Micro SD card slot x1 (up to 32GB) |
| Reset button | Yes |
| General | |
| Operating conditions | -10°C ~ 60°C (14°F ~ 140°F) humidity 90% or less (non-condensing) |
| Power supply | 5 VDC ± 10%, PoE (802.3af) |
| Power consumption | max. 3W
-I: max. 4W (max. 4.5W with ICR on) |
| IR range | up to 15m |
| PIR | Detection distance: up to 10m, angle of detection: 80° |
| Dimensions | 90 × 114 × 119.8 mm (3.6” × 4.5” × 4.8”) |
| Weight | 500g (1.1 lbs) |
